Nice Riding For Women And The Elderly
S-bending frame
Samsung battery range to 80km
Torque sensor
Foldable
Motor
36V350W rear hub motor, maximum speed 25Km/h.

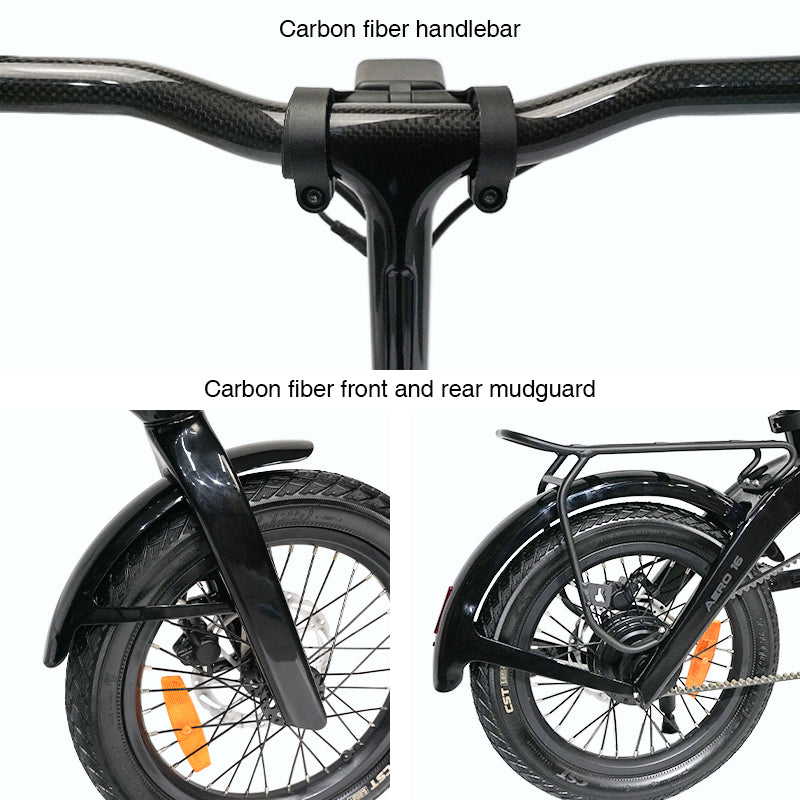

Handlebar
Foldable handle. Aluminum mechanical brake handle.
Display：KT-LCD4
Headlights
Shiny50 Headlights
Disc brake
AR-160mm mechanical disc brake disc.
Package
-
Outer Ctn-Front
-
Outer Ctn-Back
-
Toolbox
Electronics
| Motor | 36V, 350W Rear Hub Motor |
| Battery | Samsung 36V, 10.5Ah, Lithium-ion Battery with 18650 Cells |
| Display | KT-LCD4 Display |
| Sensor | Torque Sensor |
| Controller | KT 36V,15A Controller |
Performance
Top Speed*25 km/h or 16 mph*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations. |
RangeUp to 80 km (49.7 miles)**Actual performance will vary depending on temperature, road conditions, rider's weight, etc. |
Climbing AbilityUp to 15°**The actual performance would depend on the rider's physical strength. |
Component
| Frame | 6061 Aluminum S-Bending Frame Foldable |
| Front Fork | Aluminum Alloy Hard Front Fork |
| Crankset | Variable Speed Gear Plate 52T |
| Drivetrain | SHIMANO 7-speed |
| Tires | CST 20" * 2.4" Anti Puncture Tire |
| Wheels | 20"*1.75" Aluminum Rims |
| Brake | TEKTRO 160mm Aluminum Mechanical Disc Brakes |
| Weight* | Net weight: 24.5 kg/ 54 lbs Full weight: 28.5 kg/ 62.8 lbs *All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery,outer carton and all accessories. |
Geometry
| SIZE ( mm) | SYMBOL | |
| Main tube | A | 584.9 |
| Seat tube | B | 420 |
| Head tube | C | 100 |
| Head tube angle | D | 71° |
| Head tube angle | E | 61.3° |
| Chainstay | F | 444 |
| Wheelbase | G | 1064 |
| Standover | H | 260 |
| Handlebar | I | 440 |
Packing list
