Outdoor Riding Mileage Champion
Samsung battery range to 80km

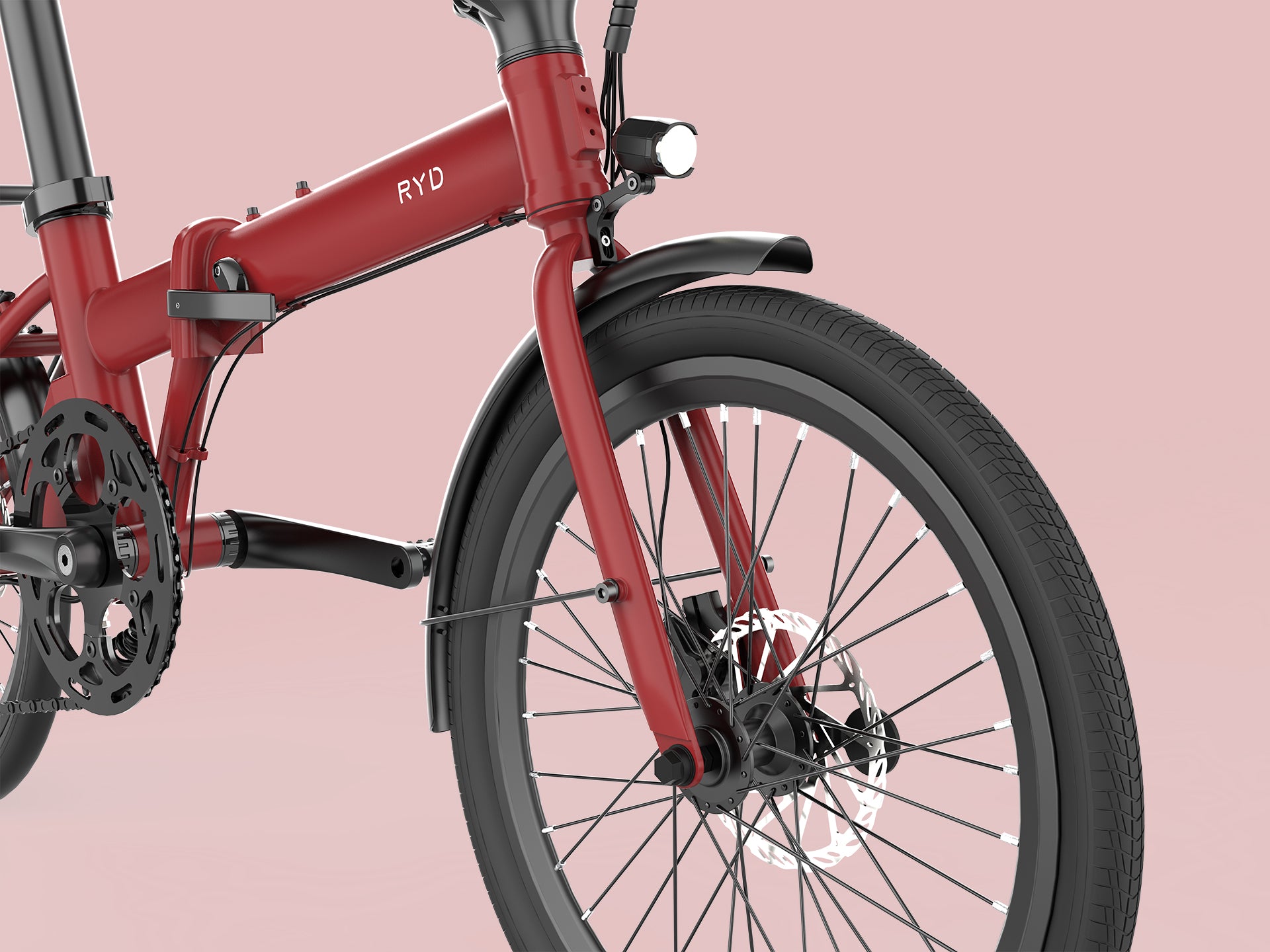

Suspension fork

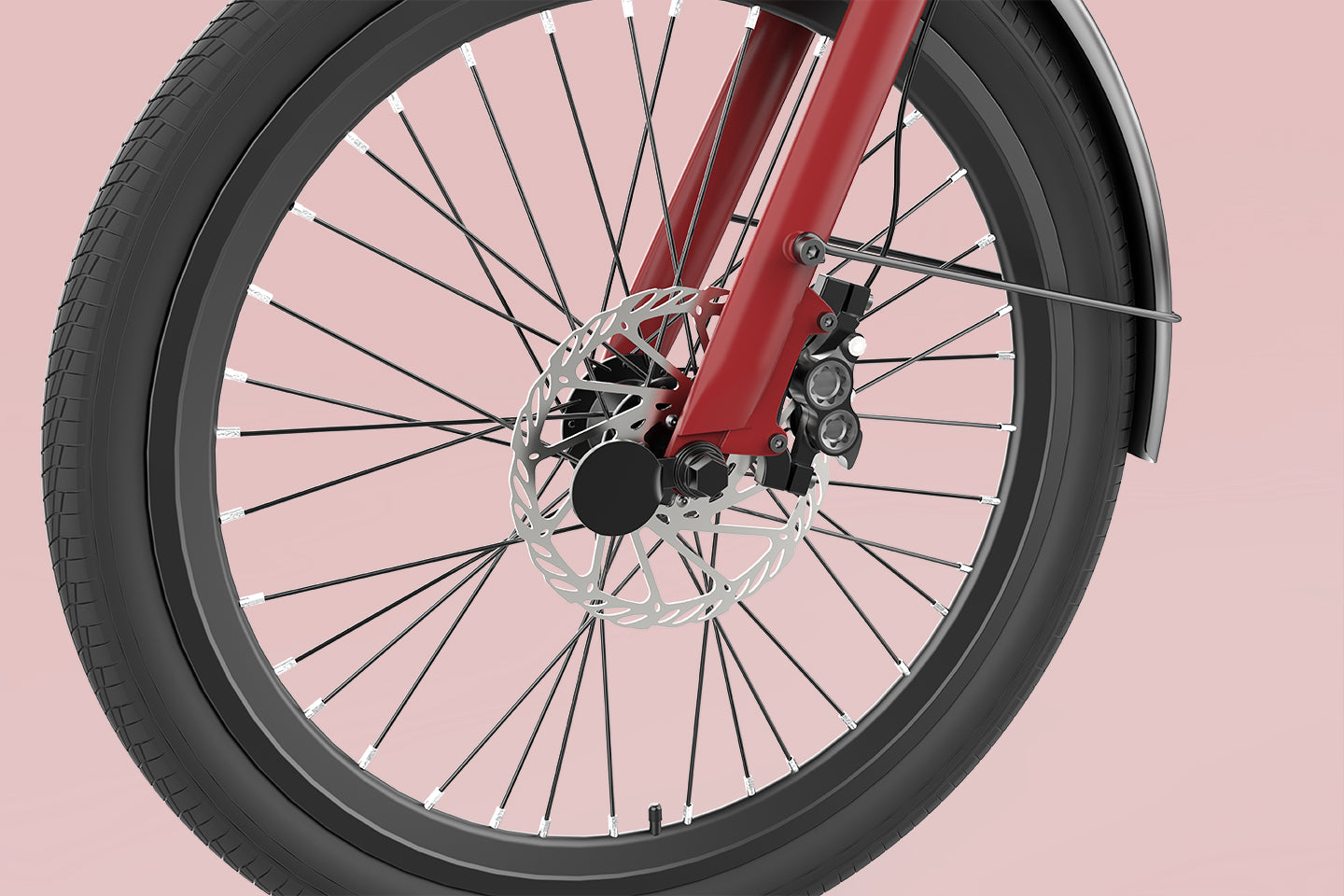

Hydraulic oil brake

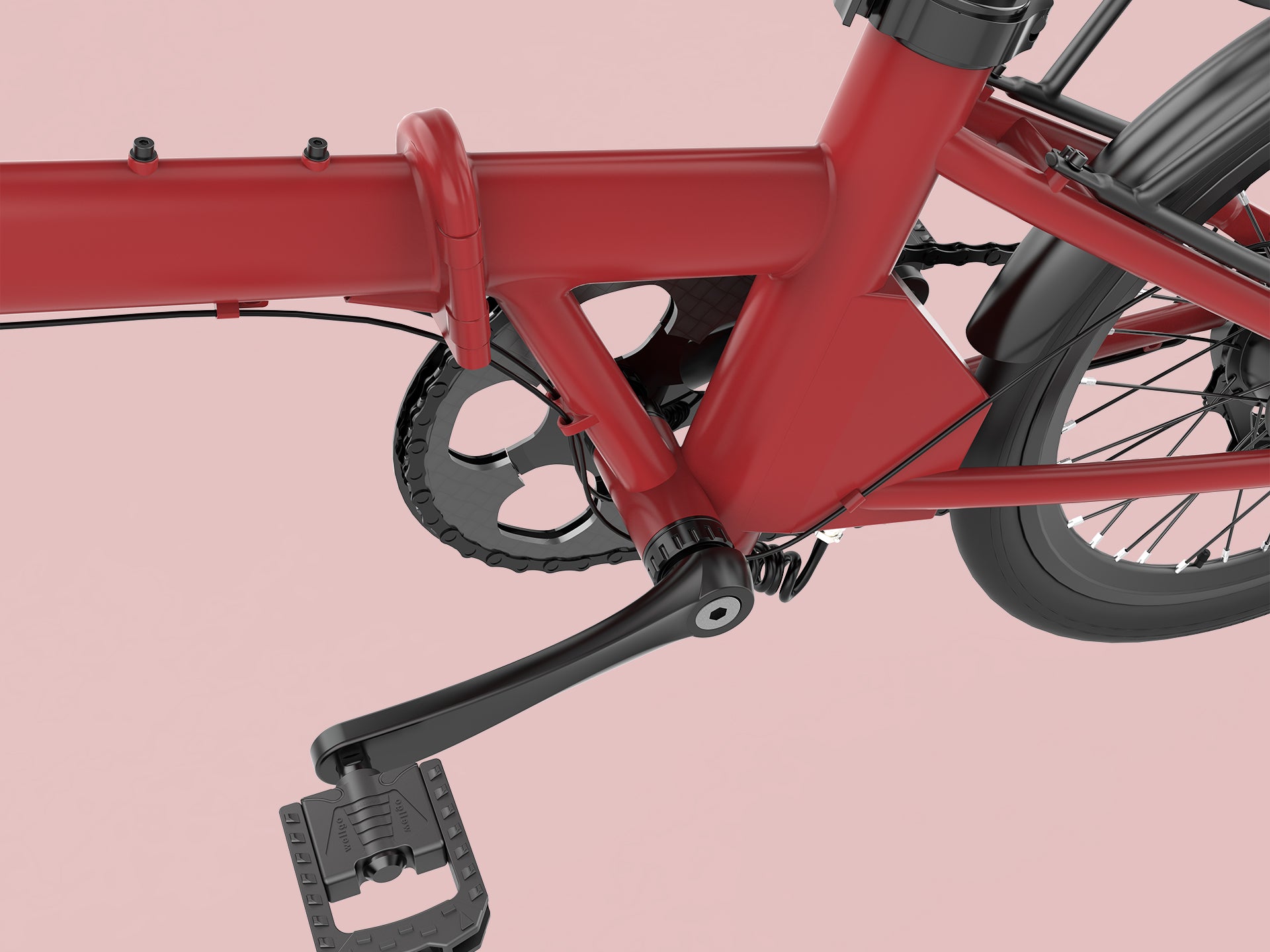

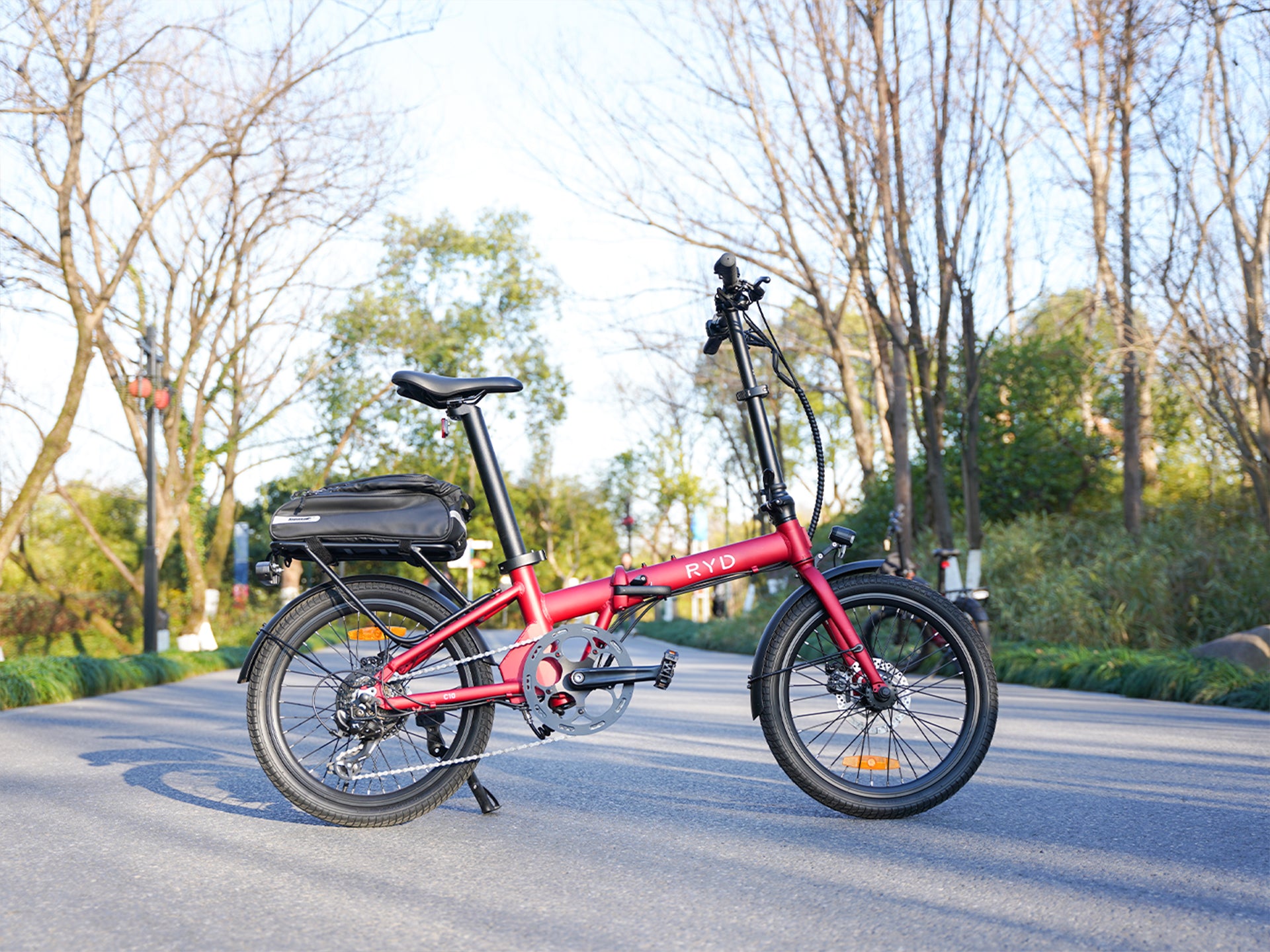

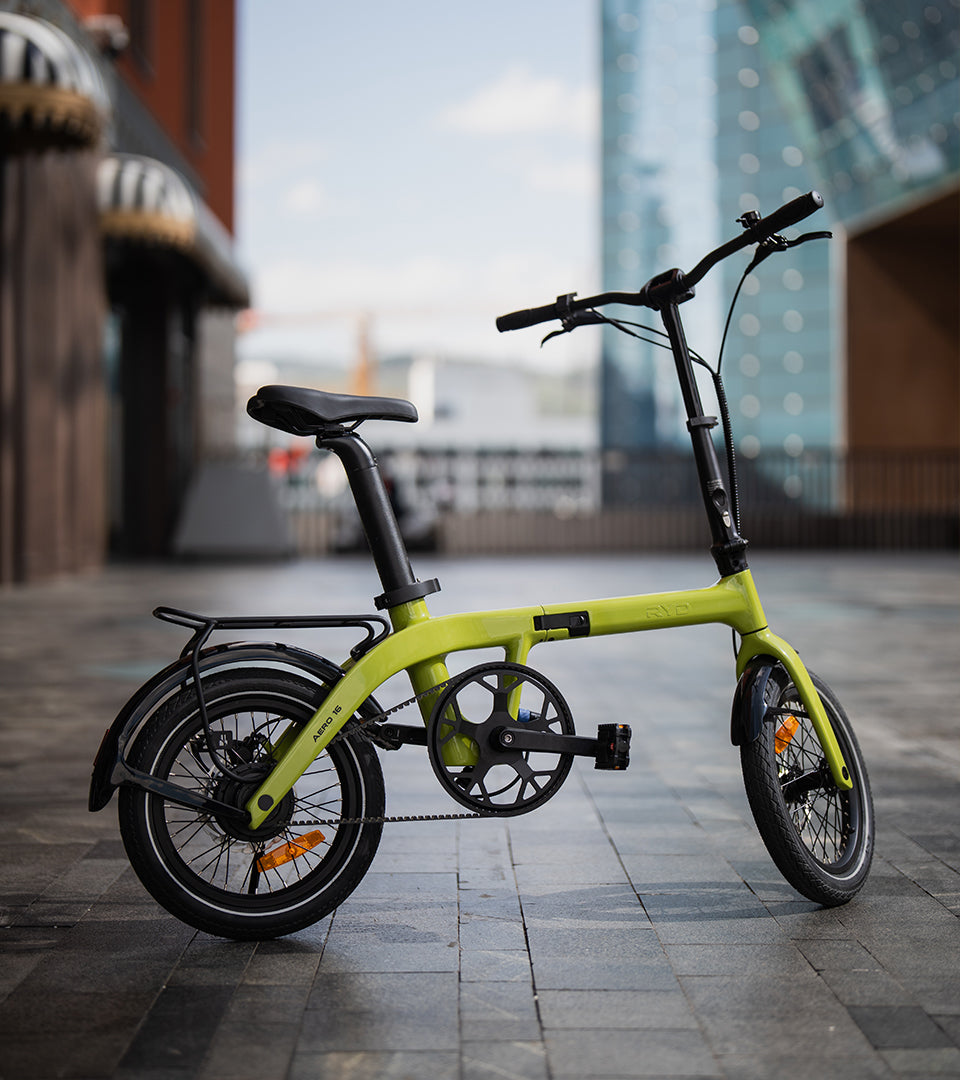

Foldable
Motor

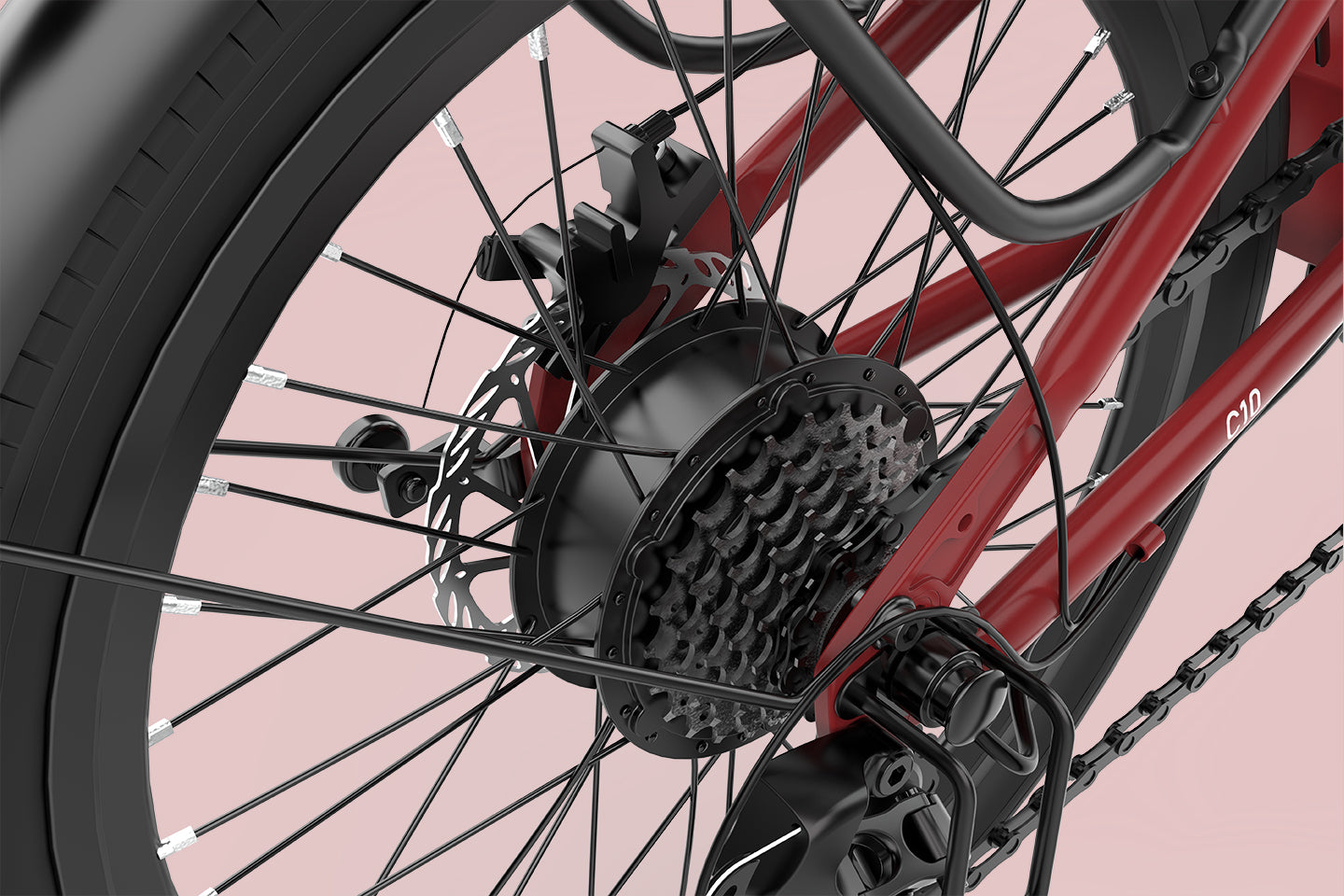

36V350W rear hub motor, maxmium speed 25Km/h.
Headlights
Shiny50 Headlights

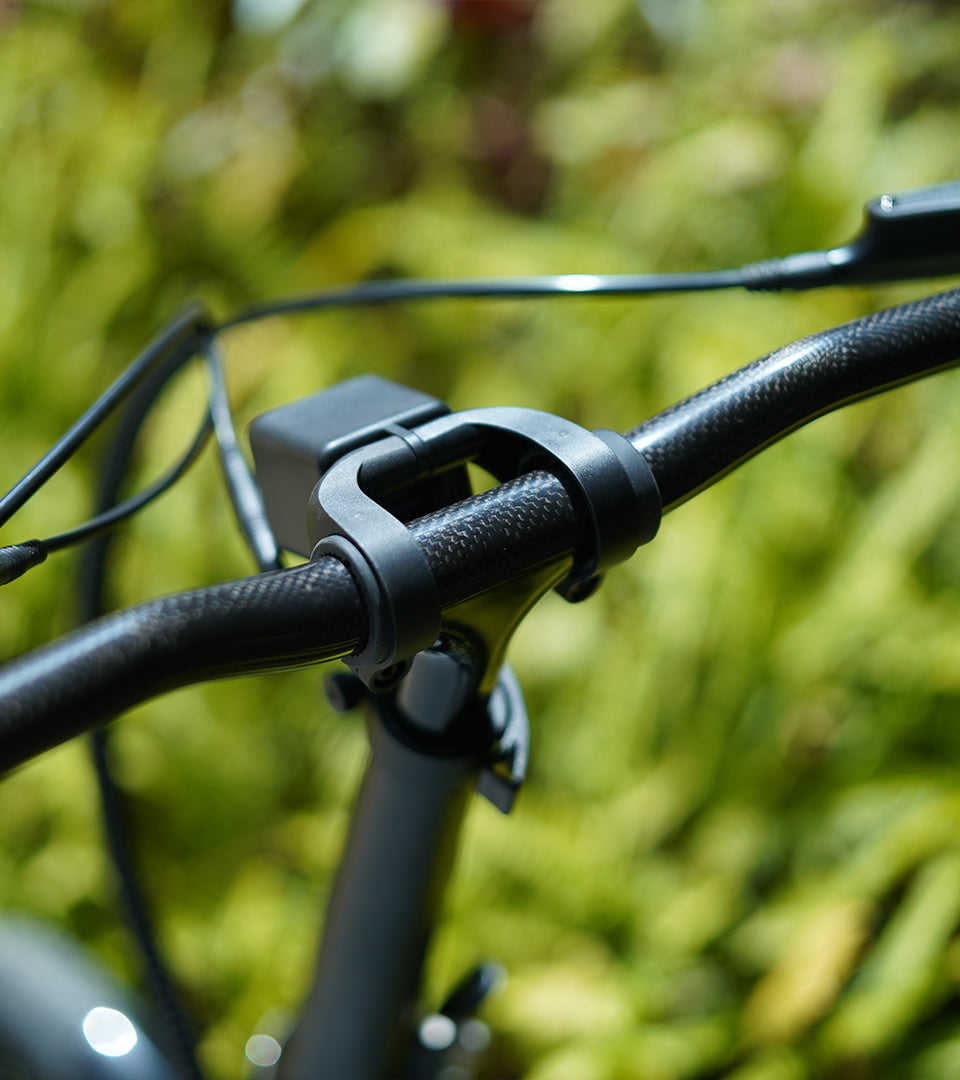

Handlebar
Foldable handle. Aluminum mechanical brake handle.
Display：KT-LCD4

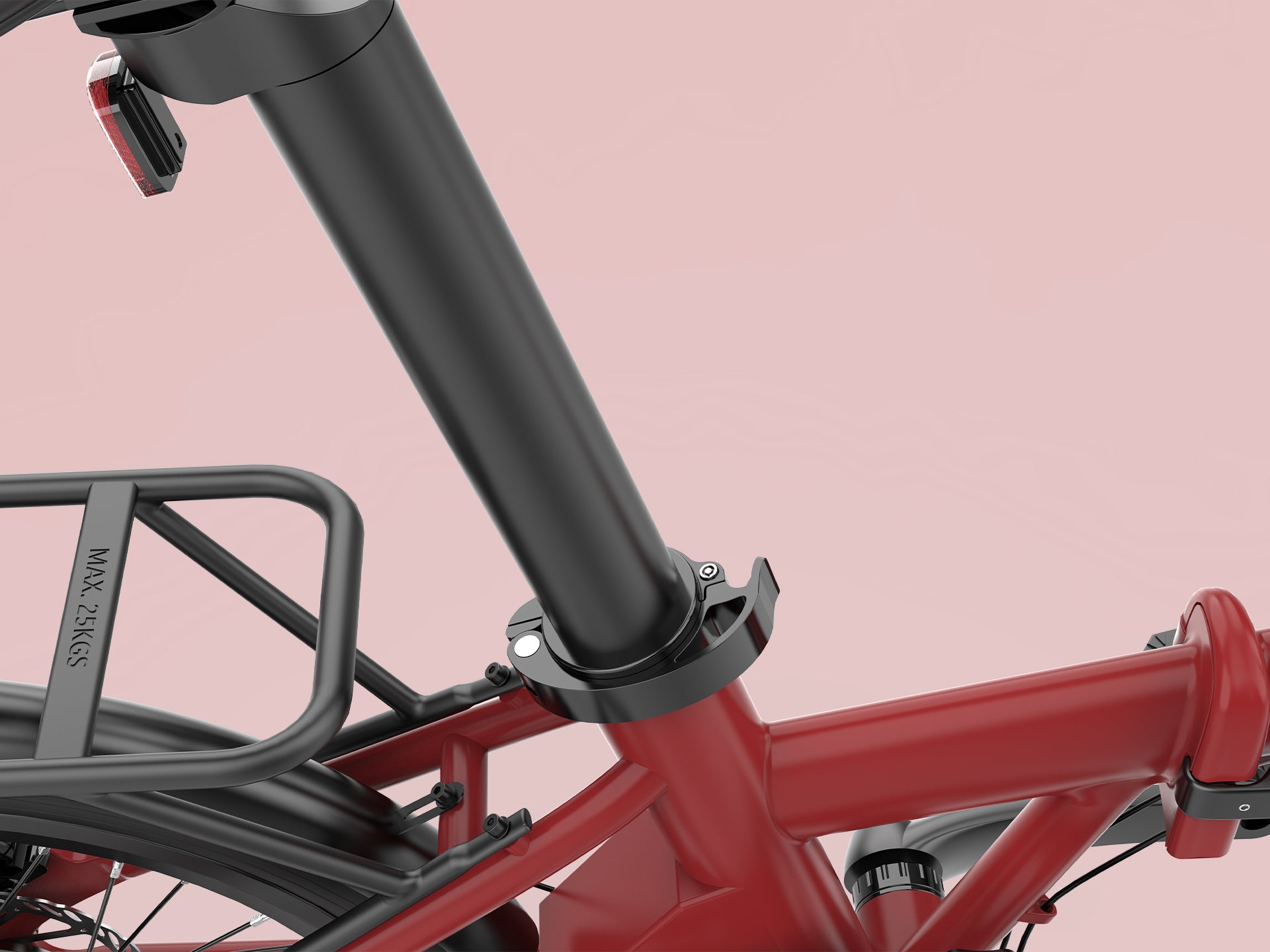

Tail light
Steering and brake brightening functions.
Package
-
Outer Ctn-Front
-
Outer Ctn-Front
-
Toolbox
Electronics
| Motor | 36V, 350W Rear Hub Motor |
| Battery | Samsung 36V, 10.5Ah，Lithium-ion Battery with 18650 Cells |
| Display | KT-LCD4 Display |
| Sensor | Hall speed Sensor |
| Controller | KT 36V,15A Controller |
Performance
Top Speed*25 km/h or 16 mph*The motor will stop giving assist at the stated top speed. You can still ride beyond the stated top speed with pure muscle power. This limit is set in accordance with local regulations. |
RangeUp to 80 km (49.7 miles)**Actual performance will vary depending on temperature, road conditions, rider's weight, etc. |
Climbing AbilityUp to 15°**The actual performance would depend on the rider's physical strength. |
Component
| Frame | 6061 Aluminium Frame Foldable |
| Front Fork | Hydraulic Lock Shock Suspension Front Fork |
| Crankset | Variable Speed Gear Plate 52T |
| Drivetrain | SHIMANO 7-speed |
| Tires | CST 20" * 3.0" Fat Tires |
| Wheels | 20"*3.0” Aluminium Rims |
| Brake | TEKTRO 160mm Hydraulic Disc Brakes |
| Weight* | Net weight: 27 kg/59.5 lbs Full weight: 31 kg/ 68.3 lbs *All stated weight numbers have a +/- 3%-5% tolerance. Net weight includes the battery but excludes all accessories. Full weight includes the battery, outer carton and all accessories. |
Geometry
| SIZE (mm) | SYMBOL | |
| Main tube | A | 585 |
| Seat tube | B | 410 |
| Head tube | C | 100 |
| Head tube angle | D | 71° |
| Head tube angle | E | 73° |
| Chainstay | F | 471.1 |
| Wheelbase | G | 1089 |
| Standover | H | 620 |
| Handlebar | I | 440 |
Packing list
